GATE_WITH_TAPPED_TOROID

Published:2009/7/16 2:21:00 Author:Jessie | From:SeekIC

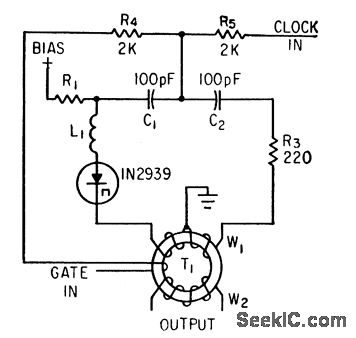

Arrangement of toroid windings minimizes number of com ponents in ac bridge used as computer gate, while keeping gating pulse out of output.R3 adjusts balance. Bias is adjusted for stable switching.-F. W. Kantor, Tunnel-Diode Gate has Subnanosecond Rise Time, Electronics, 35:15, p 62-64.
