GATE_TURNOFF_D_C_CHOPPER

Published:2009/7/10 23:41:00 Author:May | From:SeekIC

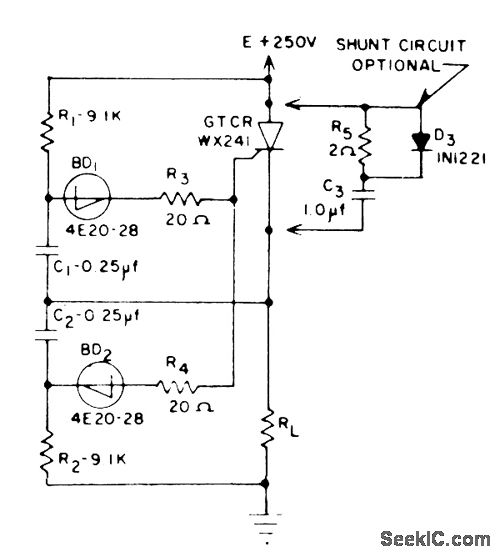

Will chop 1 kw at 1 kc. Ralio of on time to off time can be adjusted to control power, voltage, tem-perature, and other parameters. Shunt circuit allows larger currents to be chopped.-J. W.Motto, Jr, Switching Circuits Using the Gote Turnoff Controlled Rectifier, EEE, 11:3, p52-55.
