GATE_TURNOFF_CHOPS_28V_AT_1OO_KC

Published:2009/7/10 23:29:00 Author:May | From:SeekIC

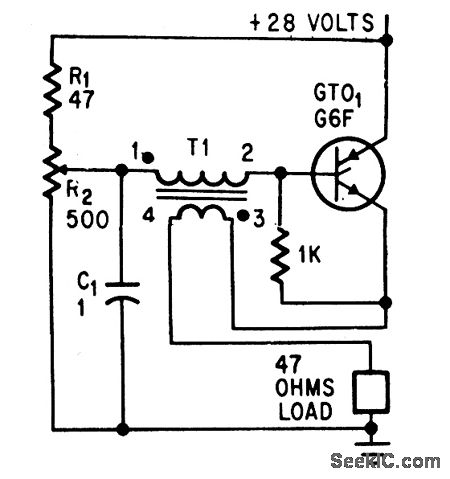

Saturctble transformer and gate turnoff scr give simple 100-kc chopper in which potentiometer R2 controls on-to-off timer.-D.R. Grafham, Now the Gate Turnoff Switch Speeds Up D-C Switching, Electronics, 37:12, p64-71.
