GATE_FOR_200_MC_INTERVAL_TIMER_

Published:2009/7/16 1:36:00 Author:Jessie | From:SeekIC

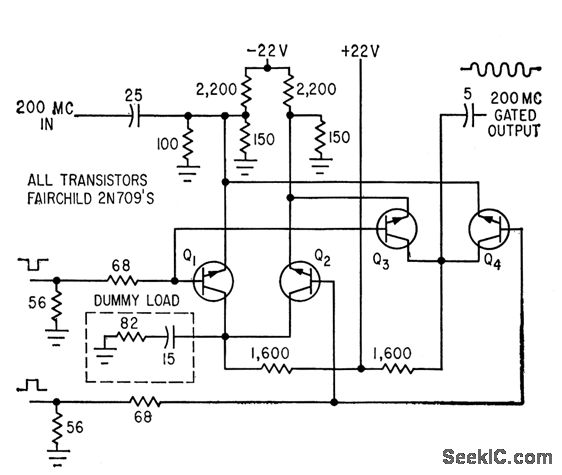

Two pairs of transistors can turn gate on or off in 1 nsec, from separate start and stop inputs. Only one transistor per pair conducts at a time.-C.S. Coffey, VHF Counter Measures Time Intervals Precisely, Electronics, 36:34, P 27-29.
