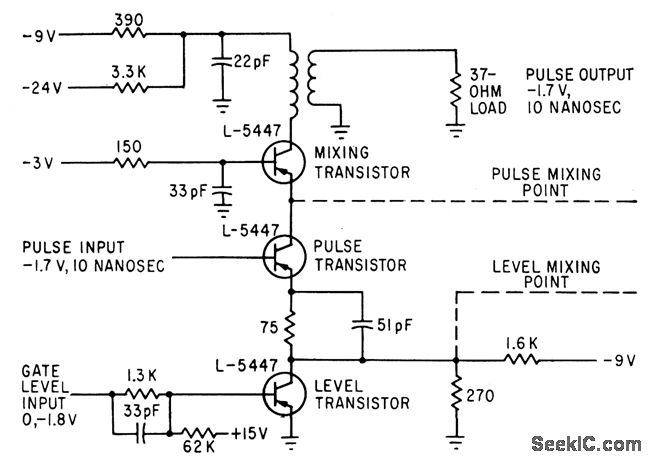

GATE_AND_MIXER_FOR_10_NSEC_PULSES

Published:2009/7/12 21:08:00 Author:May | From:SeekIC

Used in 50-megapulse computer.Propagation delay time of circuit is only 4.5 nsec.Transistors may also be 2N769 or 2N976-K,H.Konkle and J. E. Laynor, Key to Faster Computers:Ten-Nanosecond Amplifer.Electronics,35:50,p39-41.
