GATED_OSCILLATOR

Published:2009/7/16 1:47:00 Author:Jessie | From:SeekIC

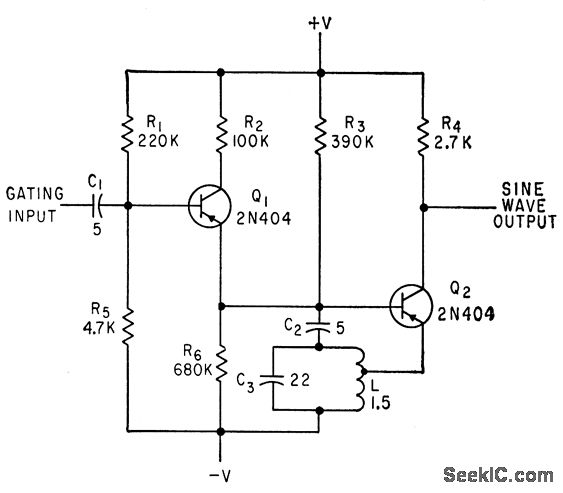

Drives pair of pulse generators for selective calling system.-A. I. Perlin, Selective Calling for Data Link Systems, Electronics, 33:18, p 108-110.



Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/Basic_Circuit/GATED_OSCILLATOR.html
