Four packages of AS300 circuit board

Published:2014/3/25 21:38:00 Author:lynne | Keyword: Four packages of AS300 circuit board, AS300 | From:SeekIC

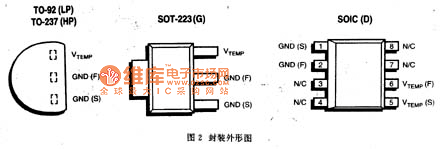

AS300 four packages shown (top view), each pin functions: GND (S) selectable detection feet ground, and the substrate GND GND (F) is not connected. GND (F): signal ground and the circuit substrate grounding pin. VTEMP (F): output pin. The pin voltage is proportional to temperature. When 27 ℃, VTEMP = 3V, VTEMP with increasing temperature at a rate of 10mV / ℃ increases. VTEMP (S): selectable sensor VTEMP the output, use only on 8LSOIC package.
