Flash beat circuit

Published:2011/5/16 20:18:00 Author:Christina | Keyword: Flash, beat | From:SeekIC

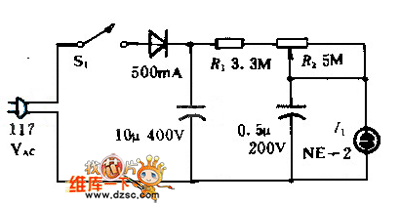

Normally, the potentiometer R2 adjusts the flash frequency of the neon relaxation oscillator to once per second, so there is no need to add the timer. You can regulate this beat frequency oscillator by the 0.55 min flash number.
