SINE_WAVE_DOUBLE_

Published:2009/7/5 19:51:00 Author:May | From:SeekIC

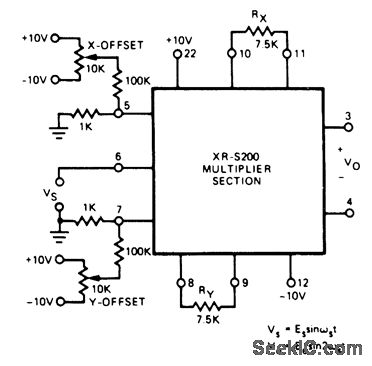

Frequency of sinusoidal input signal VS is doubled to give sine-wave output with total harmonic distortion less than 0.6％,With input of 4 V P-P at 10 kHz、output is1V P-P at 20 kHz. X and Υ offset adjustments are nulled to minimize harmonic content of out-put．－″PhaseˉLocked Loop Data Book,''Exarlntegrated Systems,Sunnyvale,CA,1978,p 9－16.
