BIQUAD_FILTER

Published:2009/6/29 22:54:00 Author:May | From:SeekIC

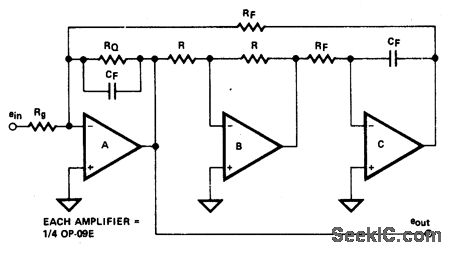

Circuit Notes The biquad filter, while appearing very similar to the state-variable filter, has a bandwidth that is fixed regardless of center frequency. This type of filter is useful in applications such as spectrum analyzers, which require a filter with a fixed bandwidth.
