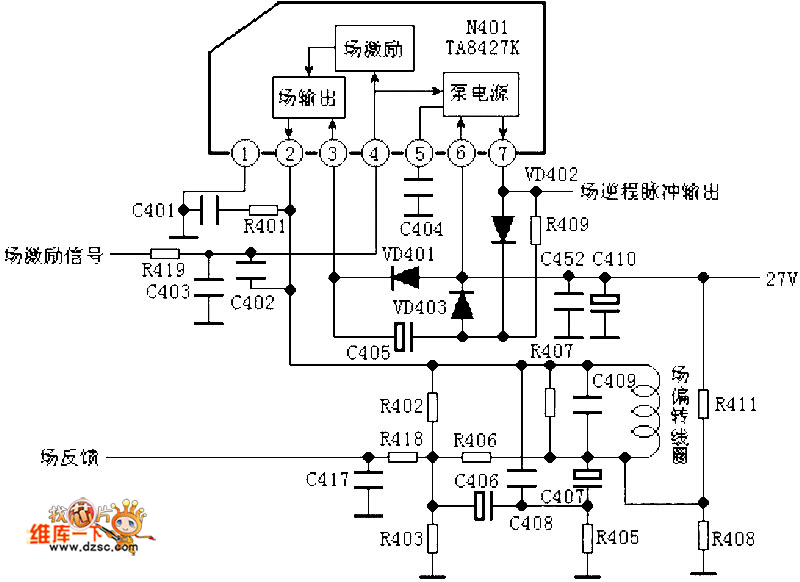

Field output circuit: TA8427 circuit diagram

Published:2012/12/15 2:25:00 Author:Ecco | Keyword: Field output | From:SeekIC

Pin 1: 0V - groundPin 2: 14V-- field outputPin 3: 27V - farm output stage power supplyPin 4: 1.0V-- field excitation signal inputPin 5: 0.6V-- phase compensationPin 6: 27V - powerPin 7: 1.9V - - pump power output
