F_M_P_M

Published:2009/7/20 23:59:00 Author:Jessie | From:SeekIC

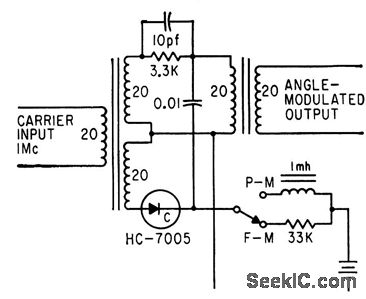

Angle modulator gives phase modulation below 500 cps and frequency modulation above. Voltage-variable capacitor HC-7005 gives phase angle change of up to 25° at 1Mc.-A. C. Todd, P. Schuck, and H. M. Sachs, Using Voltage-Variable Capacitors in Modulator Design, Electronics, 34;3, p 56-59.
