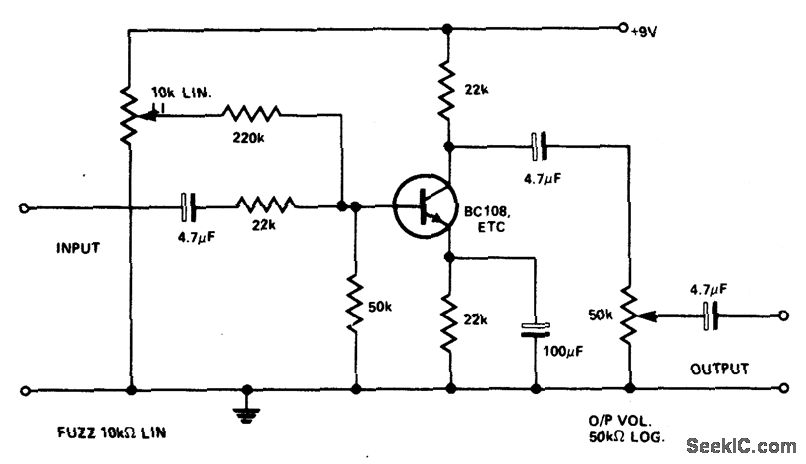

FUZZ_BOX_4

Published:2009/7/1 3:49:00 Author:May | From:SeekIC

Circuit Notes None of the components are particularly critical in value or puality ,as distortion is the sole object! The transistor could be BC107-8-9, 2N2926, etc.
