FUZZ_BOX

Published:2009/7/10 2:20:00 Author:May | From:SeekIC

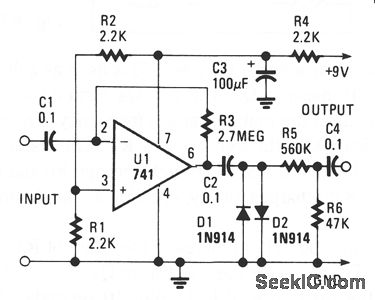

The 741's maximum gain of 20,000 is pushed to nearly 3 million dB, and therefore distorts the output. That distortion provides the fuzz sound.The level is dropped by clipping the two diodes.
