FULL_WAVE_FEEDBACK

Published:2009/7/6 1:06:00 Author:May | From:SeekIC

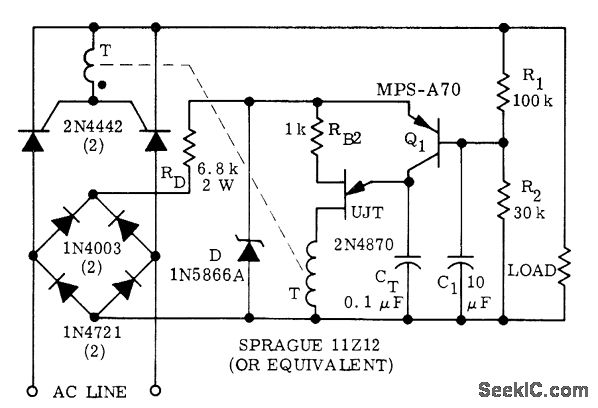

Used when average load voltage is desired feedback variable for full-wave phase control of load power. Circuit requires use of pulse transformer T.-D. A. Zinder, Unijunction Trigger Circuits for Gated Thyristors, , Motorola, Phoenix, AZ, 1974, AN-413, p 4.
