FULL_BINARY_ADDER

Published:2009/7/16 1:29:00 Author:Jessie | From:SeekIC

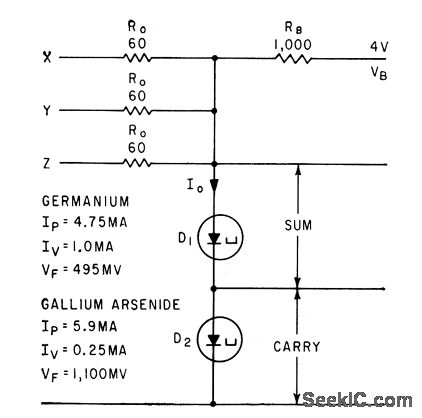

Two tunnel diodes in series perform arithmetic function of full addition.-B. Rabinovici and J. Klapper, Designing Tunnel-Diode Circuits Using Composite Characteristics, Electronics, 35:7, p 46-48.
