FREQUENCY_TO_VOLTAGE_CONVERTER

Published:2009/7/13 20:09:00 Author:May | From:SeekIC

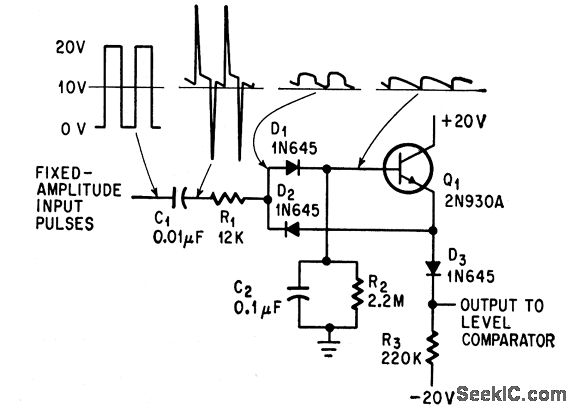

Linear staircase generator delivers d-c output voltage proportional to repetition frequency of input pulses while reiecting short-duration spurious noise pulses.-M. Merlen and D.Grossman, Interrogator Circuit Can Tell Good Data from Bad, Electronics, 37:20, p58-59.
