FREQUENCY_DOUBLER_WORKS_TO_1_MHz

Published:2009/7/1 1:37:00 Author:May | From:SeekIC

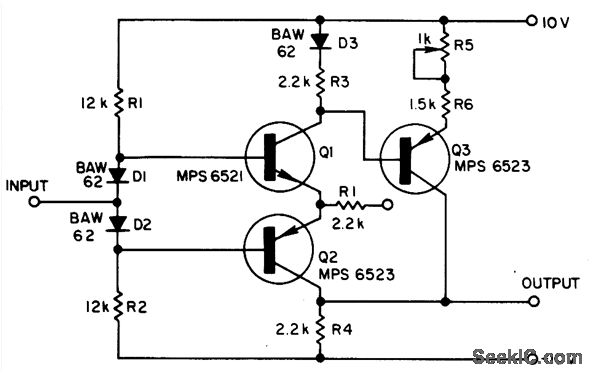

Adding components Q3, D3, and resistors R3 through R6 to a conventional complementary symmetry class AB buffer can double the frequency of an input sine wave.
