FOUR_PHASE_CLOCK

Published:2009/7/11 2:00:00 Author:May | From:SeekIC

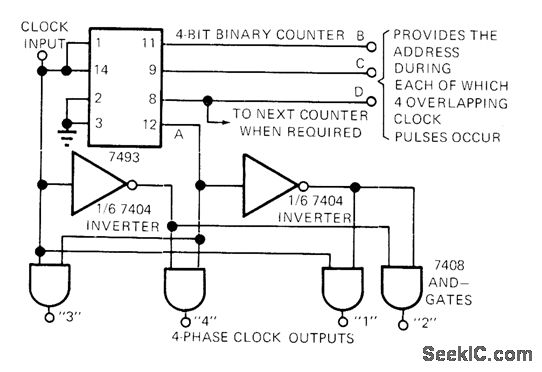

Provides expandable 3-bit binary output and four overlapping clock pulses for each unique binary output. A-output of 7493 binary counter is used along with dock input to form four-phase overlapping clock function. Article indudes timing diagram that shows sequence of output pulses. Developed for use in addlessing multiplexers, ROMs, and other digital units,-B. Brandstedt, Clock Pulse Generator Has Addressable Output, EDN Magazine. Dec. 15, 1972, p 42.
