FOUR_CHANNEL_FOUR_TRACK_MIXER

Published:2009/7/2 4:25:00 Author:May | From:SeekIC

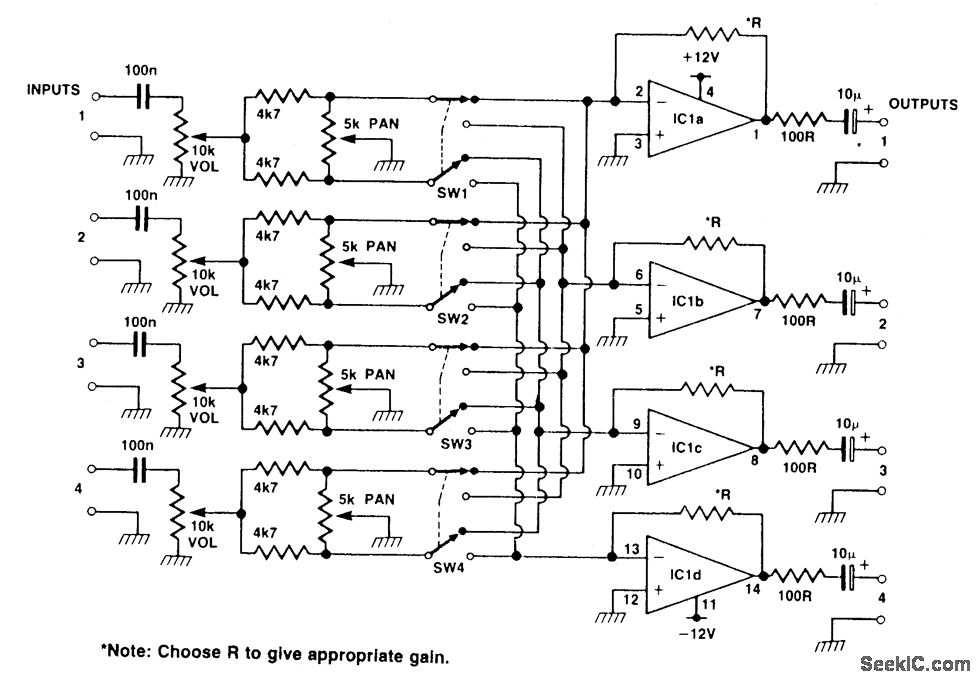

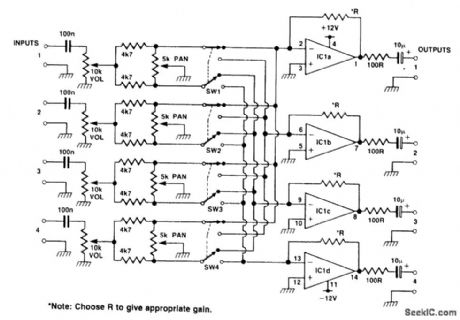

This circuit can be used as a stereo mixer as well as a four track. The quad op-amp IC gives a bit of gain for each track. The pan control allows panning between tracks one and two with the switch in the up position, and with the switch in the down position, it makes possible panning between tracks three and four. Extra channels can be added.A suitable op amp for IC1 is TL074 or similar.
