FM_AUTO_RADIO_IF

Published:2009/7/8 4:52:00 Author:May | From:SeekIC

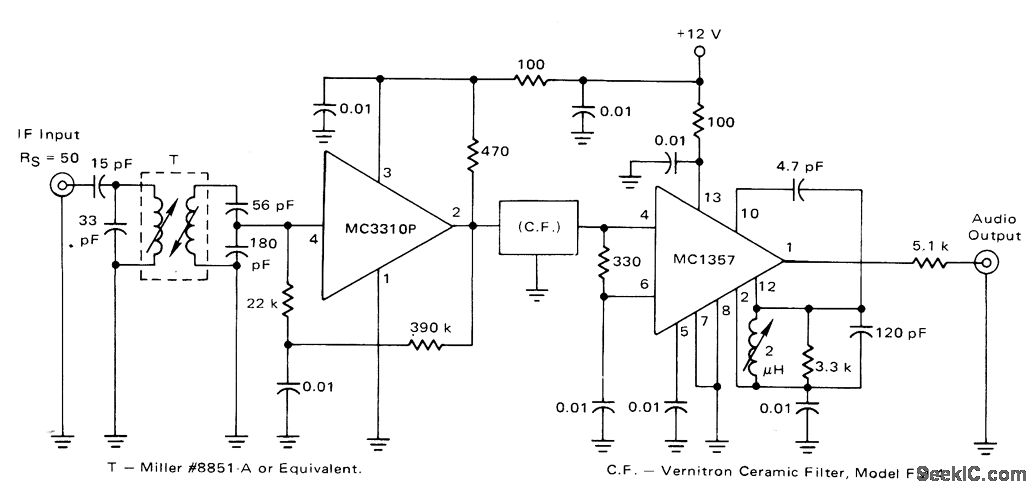

Uses MC1357 quadrature detector after ceramic filter to give IF bandwidth required for good stereo reproduction.Sensitivityis 18 μV for 3% total harmonic distortion.－''Integrated Circuit IF Amplifiers forAM/FM and FM Radios,'' Motorola,Phoenix,AZ,1975,AN-543A,p 6.
