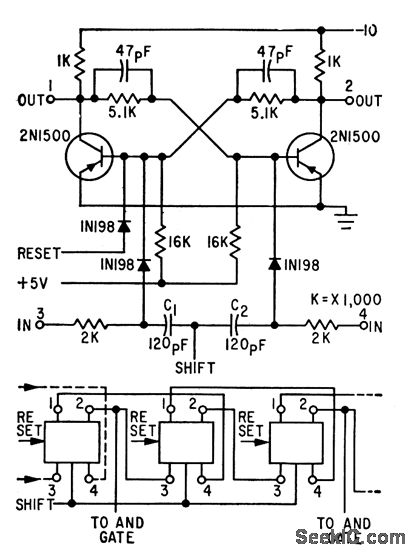

FLIP_FLOP_FOR_SHIFT_REGISTER

Published:2009/7/16 4:00:00 Author:Jessie | From:SeekIC

Used to pro duce complex pulse sequences up to 4 billion bits in length, at frequencies up to 1.5 Mc-Each flip-flop provides 10 ma when turned on and draws 0.6 ma when off.-B. K. Ericksen and J. D Schmidt, Random Pulse Generator Tests Circuits, Encodes Messages, Electronics, 34:25, p 56-59.
