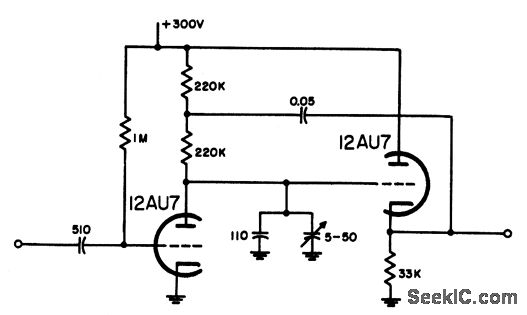

FIXED_BOOTSTRAP_DELAY

Published:2009/7/15 2:37:00 Author:Jessie | From:SeekIC

Used to provide buffer interval between sync and video information in radar relay transmitter. Requires gate at least as long as 30-microsec delay. Accuracy is only 10%.-NBS, Hand-book Preferred Circuits Navy Aeronautical Electronic Equipment, Vol.1, Electron Tube Circuits, 1963, p N9-1.
