FET_GlVES_30_dB_GAIN_RANGE

Published:2009/6/30 22:16:00 Author:May | From:SeekIC

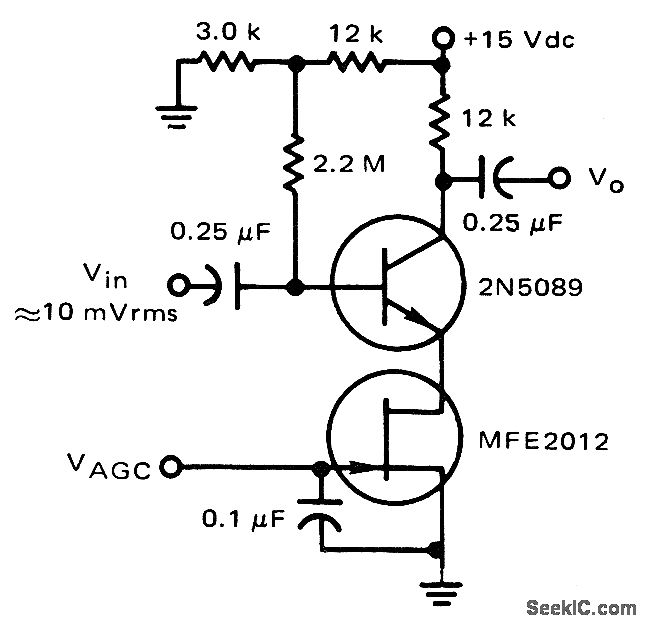

Only 1-V change in gate-source voltage of FET changes voltage gain over full range. Possible drawback is harmonic distortion due to unbypassed emit-ter degeneration.- Low Frequency Applica-tions of Field-Effect Transistors. Mototola, Phoenix, AZ, 1976, AN-511A, p 8.
