FET_ANALOG_GATE

Published:2009/7/16 2:24:00 Author:Jessie | From:SeekIC

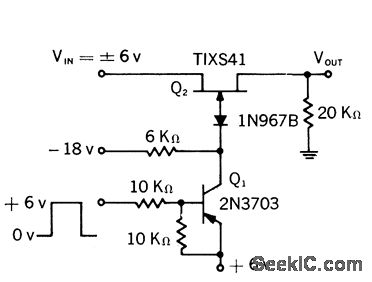

Series connection of chopper-type fet permits high-accuracy analog switching. Resistance of Q2 when on is only about 20 ohms, and drain gate leakage current is less than 0.1 nanoamp.-Six More Semiconductor Advances From TI (Texas Instruments ad), EEE, 14:8, p 120-121.
