FEEDBACK_OPAMP_FOR_BRIDGE

Published:2009/7/9 5:55:00 Author:May | From:SeekIC

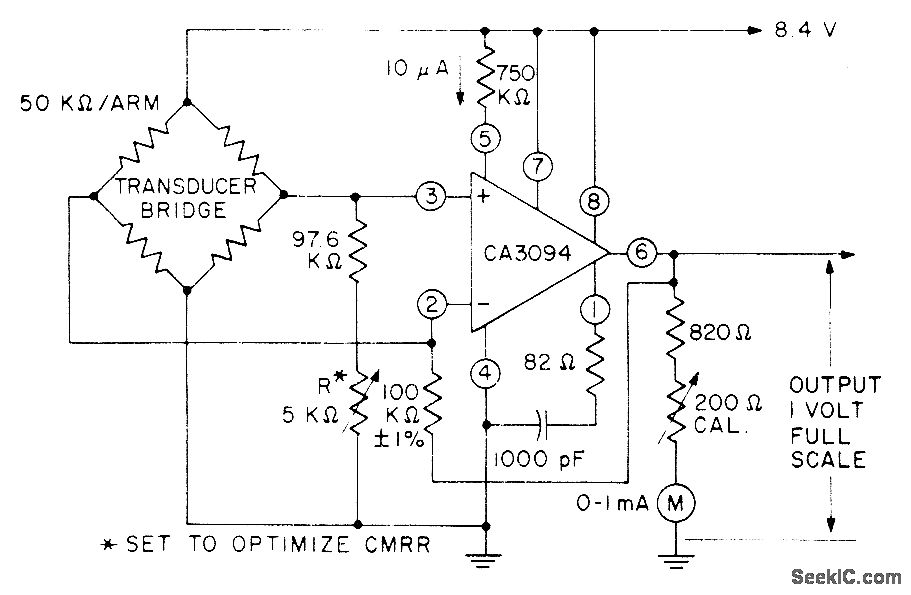

Uses CA3094 programmable opamp to convert differential input signal from resistor bridge to single-ended 1-V output signal. Circuit provides feedback for opamp. RC network between terminals 1 and 4 of opamp provides compensation to improve stability. - Circuit Ideas for RCA Linear ICs, RCA Solid State Division, Somerville, NJ, 1977, p 13.
