FAST_TUNNEL_DIODE_GATE

Published:2009/7/16 2:03:00 Author:Jessie | From:SeekIC

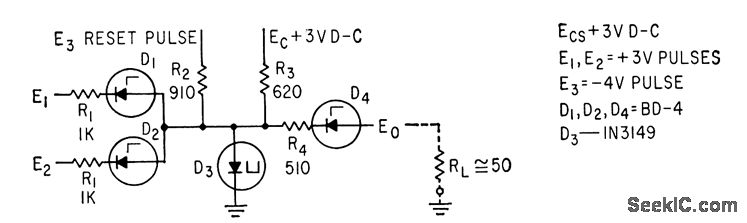

At coincidence between sampling pulse at one input and 100-Mc block pulse at other input, 11 ma current through D3 switches D3 to high level, making D4 pass current to load.-A. A. Fleischer and E. Johnson, New Digital Conversion Method Provides Nanosecond Resolution, Electronics, 36:18, p 55-57.
