FAST_SETTLING_COAX_DRIVER

Published:2009/7/14 4:22:00 Author:May | From:SeekIC

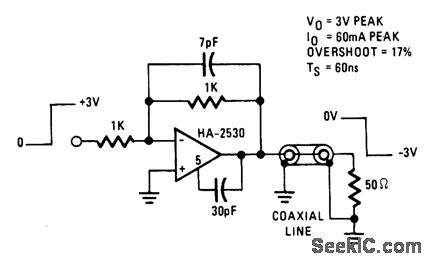

Suitable for use as radar pulse driver, video sync driver, or pulse-amplitude-modulation line driver. Uses Harris HA-2530/2535 wideband amplifier having high slew rate. Usable bandwidth is about 100 kHz when connected for noninverting operation as shown. Driver output is 60 mA into 60-ohm load. 5% settling time is 60 ns.- Linear & Data Acquisition Products, Harris Semiconductor, Melbourne, FL, Vol. 1, 1977, p 7-54 (Application Note 516).
