FAST_RECOVERY_ONE_SHOT_1

Published:2009/7/16 12:02:00 Author:Jessie | From:SeekIC

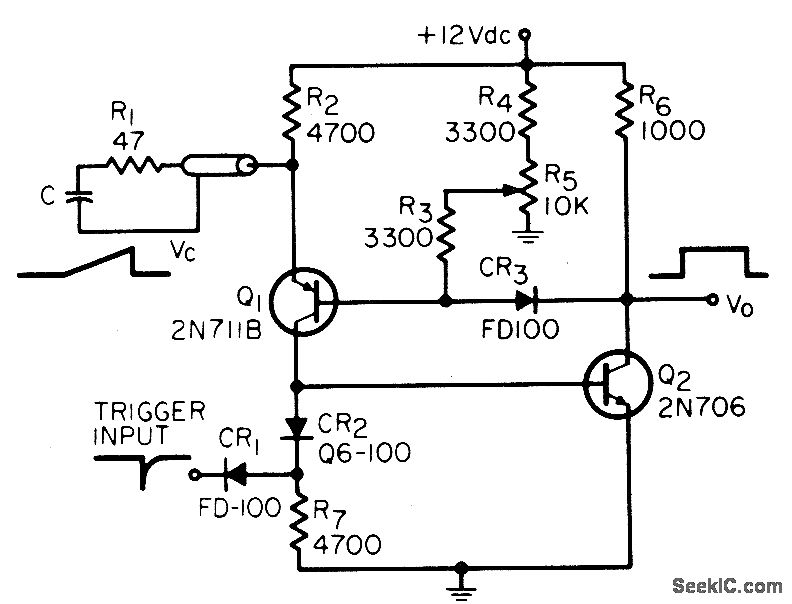

Pulse width can be varied from 0.1 microsec to 10 millisec in decade ranges by changing timing capacitors. Used in commercial radar range unit and in pulse analyzer.-J. Rogers, Fast-Recovery One-Shot Multi Gives 10:1 Width Control, EEE, 14:4, p 44-45.
