FAST_READOUT_MEMORY

Published:2009/7/16 2:22:00 Author:Jessie | From:SeekIC

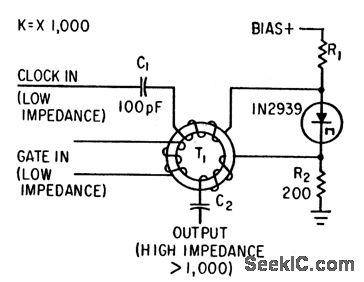

Voltage-divider version of tunnel-diode gate is used with toroid to give extremely fast readout, for use with computers having dock rates above 500 Mc. Tertiary winding cancels gating spike.-F. W. Kantor, Tunnel-Diode Gate has Subnanosecond Rise Time, Electronics, 35:15, p 62-64.
