FAST_ON_AND_OFF

Published:2009/7/14 0:42:00 Author:May | From:SeekIC

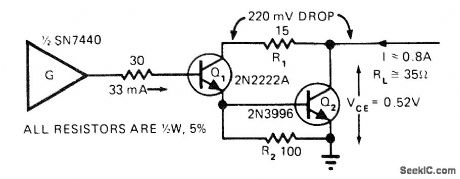

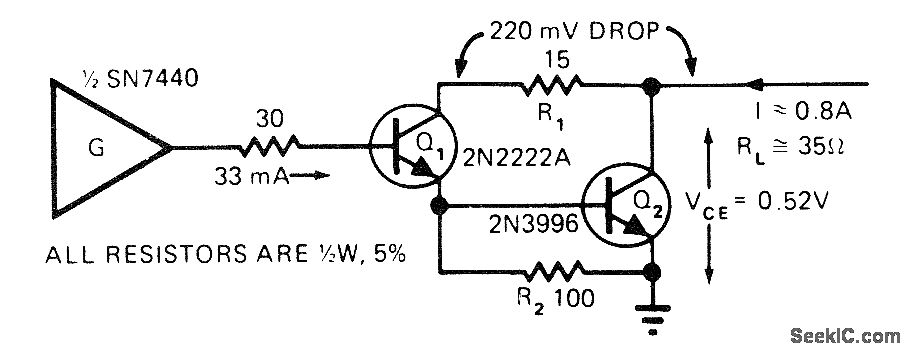

Driver Q1 is low-power device with fast switching time, while power transistor Q2 handles power dissipation and amperes of current being switched. Used in TTL circuits requiring fast solid-state switches having known and repeatable switching times. Cur-rent reaches maximum in about 50 ns.-C. Venditti, Fast Power Switch Self-Corrects for Degradation, EDN Magazine, Jan. 20, 1975, p 59-60.
