FACSIMILE_SYNC_PULSE_SHAPER

Published:2009/7/20 1:54:00 Author:Jessie | From:SeekIC

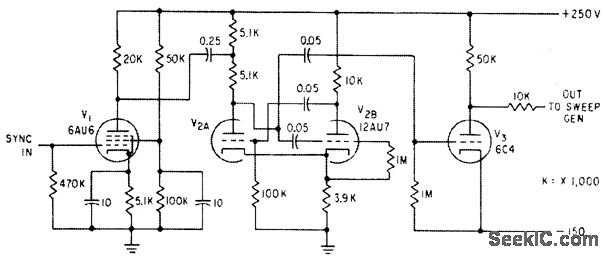

Used to change shape of high-precision sync pulse for facsimile recorder in order to change time of return trace. Amplifier V1 is coupled to plate driven one-shot mvbr whose time constants determine return trace time.-E. W. Winkle, High-Precision Sweep Generator, return trace. Amplifier V1 is coupled to plate. Electronics, 33:50, p 88-90.
