EXTRA_TRANSISTOR_STABILIZES_ONE_SHOT

Published:2009/7/16 4:13:00 Author:Jessie | From:SeekIC

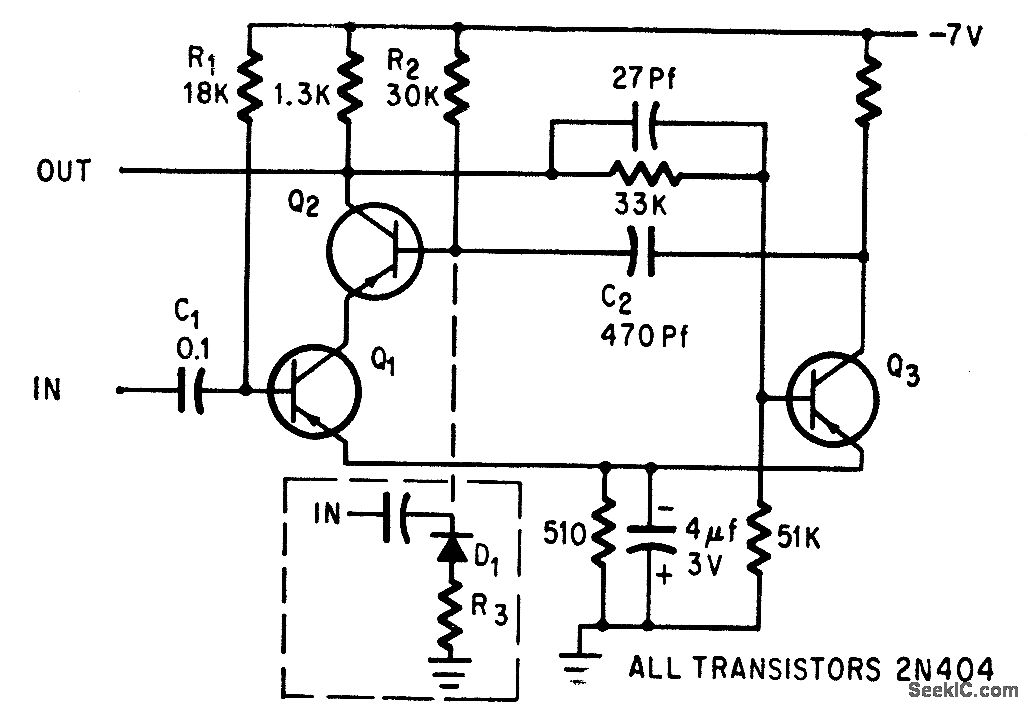

Q1 isolates triggering circuit from timing elements R2-C2, making duration of output pulse independent of input pulse amplitude and reducing minimum triggering voltage from 0.25 V to 0.l V.-J. Kalisz, Isolating Transistor Improves One-Shot, Electronics, 38:25, p 76.
