EXPANDED_SCALE_METER_DOT_OR_BAR

Published:2009/7/1 22:09:00 Author:May | From:SeekIC

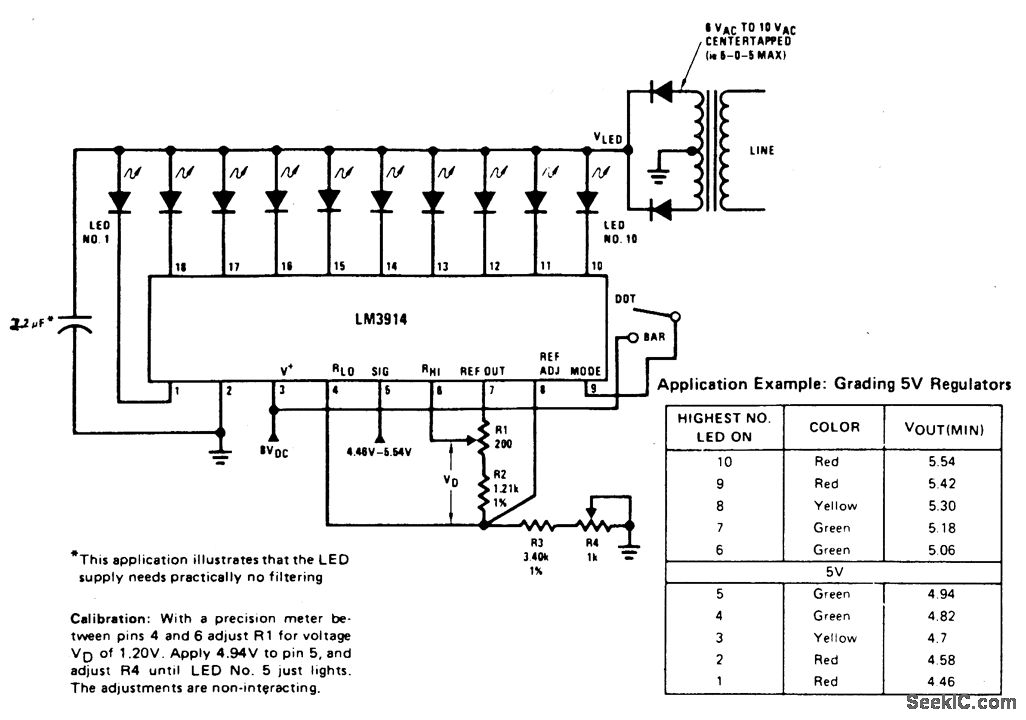

A bar graph driver IC LM314 drives an LED display.The LEDs may be separateor in a combined (integral) bar graph display.
