EXCLUSIVE_OR

Published:2009/7/5 20:25:00 Author:May | From:SeekIC

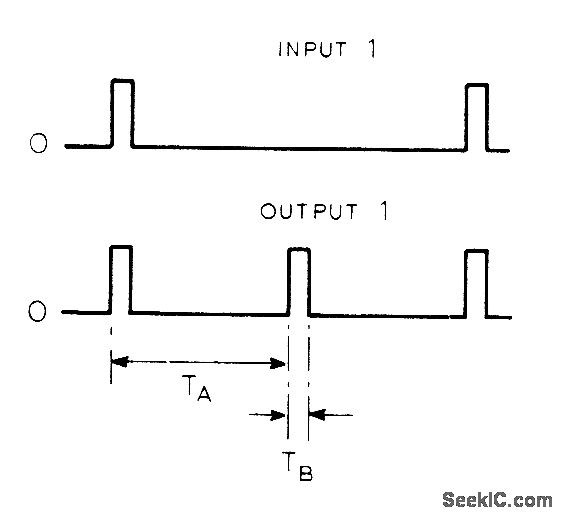

gate combines both pulses at output、Values shown for R and C will double frequency of 800-μS-wide inρut pulses having repetition rate of about 130 ρer second.－K.R.Brooks,Pulse Rate Doubler Wireless World,Aρril 1976、ρ 63
