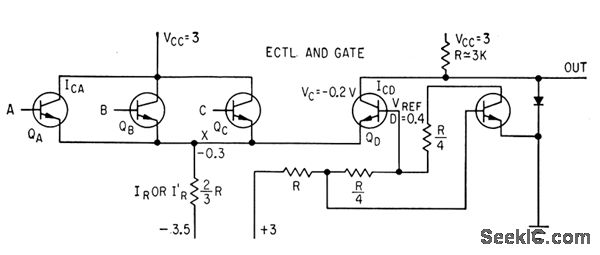

EMITTER_COUPLED_TRANSISTOR_AND_GATE

Published:2009/7/16 3:41:00 Author:Jessie | From:SeekIC

Design gives manufacturing simplicity for integrated circuits without current hogging, but requires two power supplies. QD will con duct and QA QB, and QC will be off when any of input A, B, or C are below 0.2V.-A. E. Skoures, Choosing Logic for Microelectronics, Electronics, 36:40, p 23-26.
