EMITTER_COUPLED_MVBR

Published:2009/7/16 5:03:00 Author:Jessie | From:SeekIC

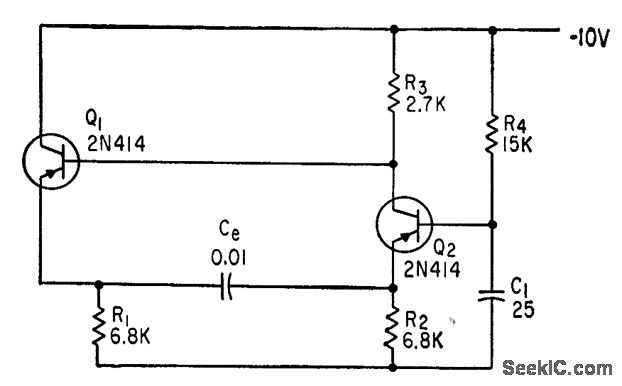

When Q1 conducts, Q2 is cut off and conversely. Duration of both quasi-stable states is controlled by Ce. Q2 should saturate when conducting, to prevent distortion in flat tops of rectangular output pulses.-B. Rakovic, One More Transistor makes a Linear Sawtooth, Electronics, 35:49, p 50-51.
