ELLIPTICAL_PAITERN

Published:2009/7/10 22:21:00 Author:May | From:SeekIC

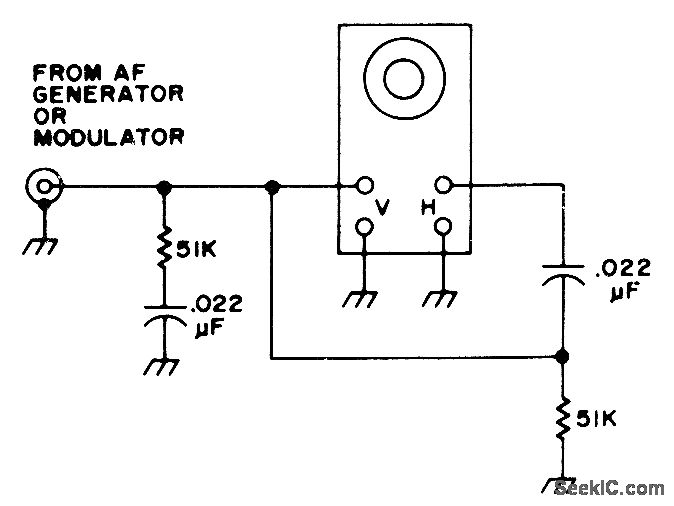

Connection shown gives Lissajous-type elliptical pattern on CRO from ordinary AF signal generator. Modulation can be added to eithervertical or horizontal feed for CRO.-Novice Q & A, 73 Magazine, March 1977, p 187.
