ELECTRONIC_FADER

Published:2009/7/14 3:55:00 Author:May | From:SeekIC

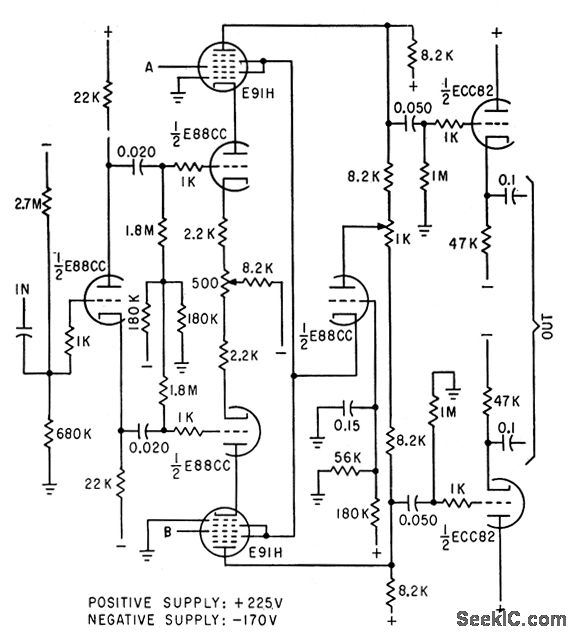

used to fade audio signals on and off without Producing audible switching transients. signals from matching network of driver are applied to Point A and B.-E. de Boer Electronic Fader for Auditory Research,Electronics,33:50,p 85-87.
