ELECTRONIC_BELL

Published:2009/7/2 4:12:00 Author:May | From:SeekIC

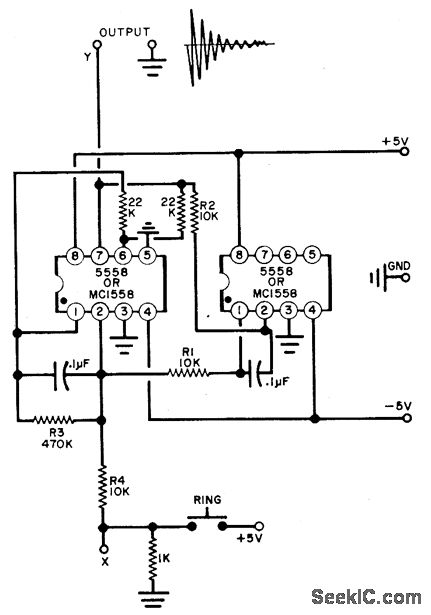

Coarse frequency is controlled by the capacitors which must be kept nearly identical in value to each other for best results. Fine tuning is accomplished with R1 and R2. The decay time is controlled by R3.
