EIA-422-A input protection circuit diagram

Published:2011/5/5 9:31:00 Author:Rebekka | Keyword: input protection | From:SeekIC

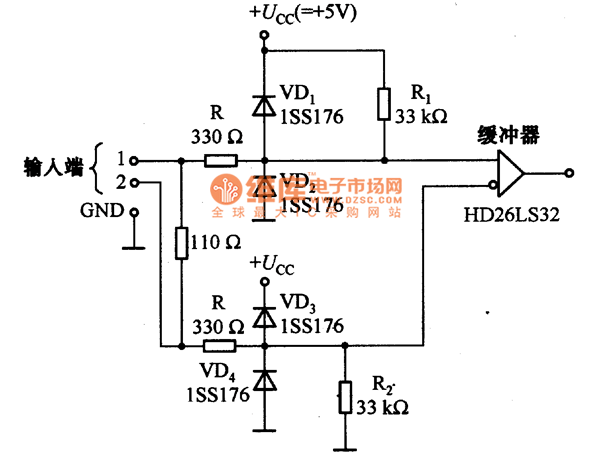

The figure shows two signal lines transmit digital signal EIA-422-A input protection circuit. Resistor R and diode VD1 ~ VD2 are used for protection.
