ECL_to_TTL_translator_tracking

Published:2009/7/24 9:32:00 Author:Jessie | From:SeekIC

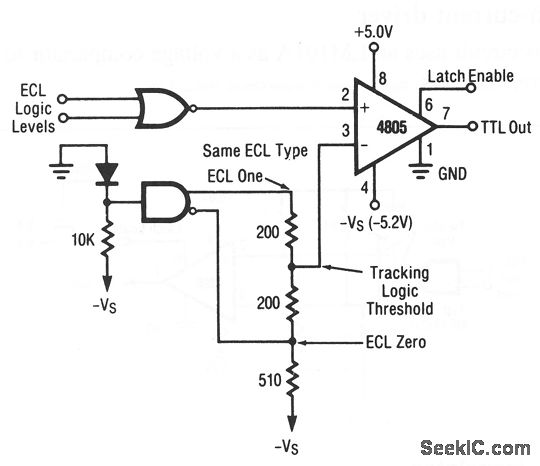

This circuit uses an RC4508 comparator as an ECL-(single-ended) to-TTL translator with tracking ECL reference. Raytheon Linear Integrated Circuits, 1989, p. 5-13.
