ECL_TTL_to_TTL_translator

Published:2009/7/24 9:34:00 Author:Jessie | From:SeekIC

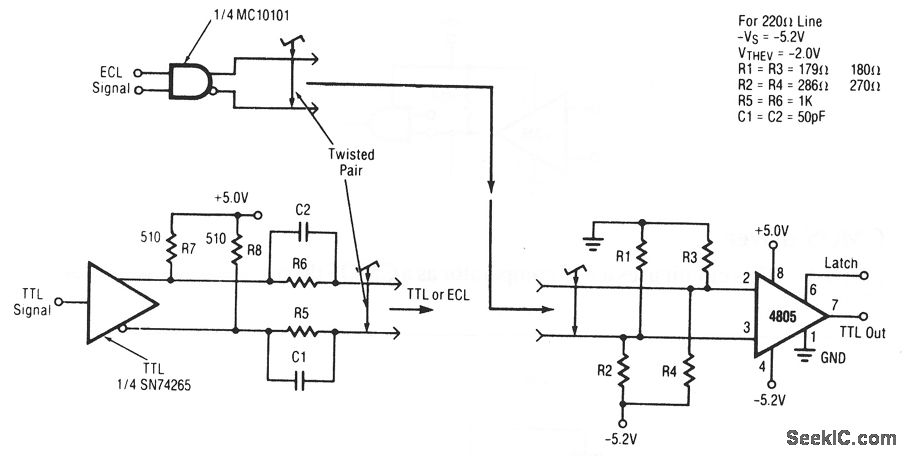

This circuit adapts either ECL Or TTL circuits using an RC4508 comparator. Raytheon Linear Integrated Circuits, 1989, p. 5-14.
