Double-button touching light switching circuit ( 1 )

Published:2011/12/8 1:21:00 Author:Ecco | Keyword: Double-button , touching light , switching circuit | From:SeekIC

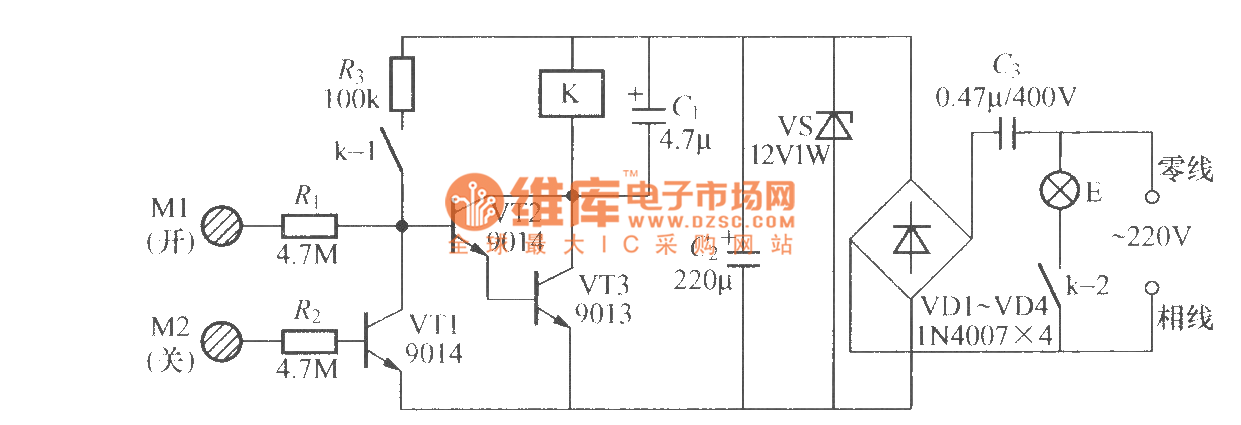

Double-button touching light switching circuit is shown as the chart, it is mainlycomposed ofthe transistor switch circuit , relay control circuit and power circuit.
