Double-barreled double-block circuit diagram

Published:2011/8/1 21:20:00 Author:Ecco | Keyword: Double-barreled , double-block | From:SeekIC

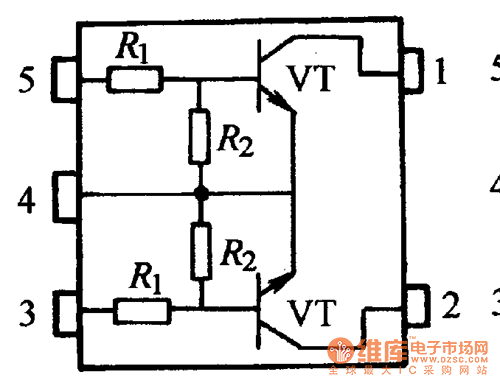

The main transistor with resistance is a kind of small power tube, which is used as the electronic switch or inverter in household appliances and other electronic devices. Some band-stop tubes contain two transistors and lead 5-6 feet (dual-barreled dual-resistance model, it is shown in Figure)
