Dot, line overflow LED display circuit diagram composed of LM3914

Published:2011/5/5 3:10:00 Author:Ecco | Keyword: dot, line overflow, LED , display circuit | From:SeekIC

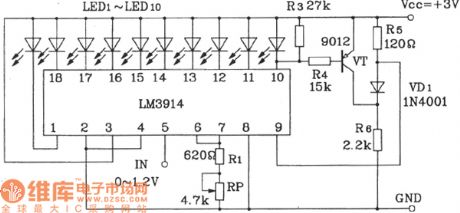

Dot, line overflow LED display circuit composed of LM3914 is shown as the chart. This circuit shows working mode when there is no overflow. When the degree is overflow, LED display changes into line mode, thus indicating overflow.
