Digital Encoder Circuit diagram Using Stepper Motor

Published:2013/3/28 3:57:00 Author:Ecco | Keyword: Digital Encoder, Stepper Motor | From:SeekIC

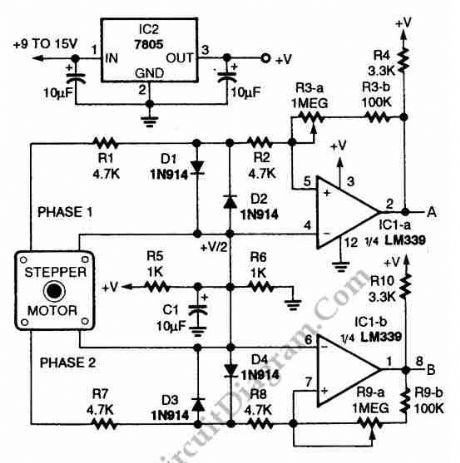

Using circuit depicted in the schematic diagram below, the direction and shaft rotation of stepper motor can be seen on the LED display. Alternative to digital rotation encoder as a digital encoder input, this circuit uses a stepper motor. Here is the schematic diagram of the circuit:
