Digital Encoder Circuit Using Stepper Motor

Published:2012/9/3 2:20:00 Author:Ecco | Keyword: Digital Encoder , Stepper Motor | From:SeekIC

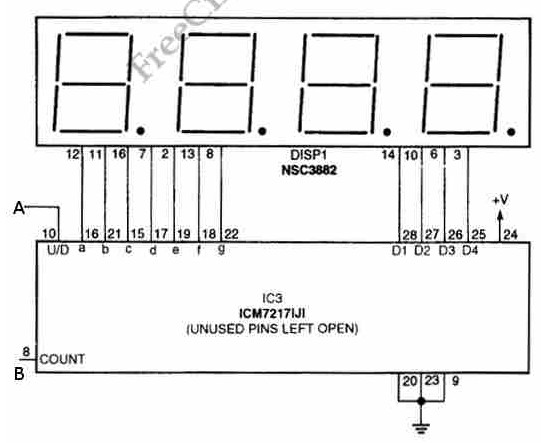

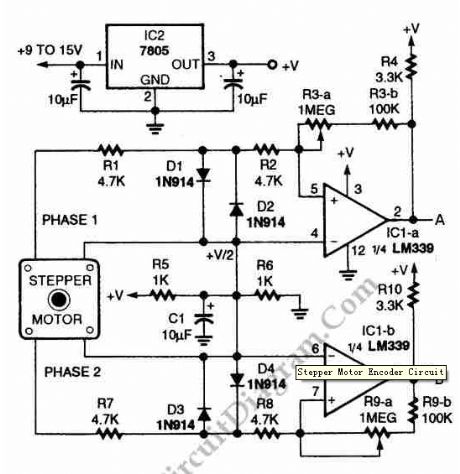

Using circuit depicted in the schematic diagram below, the direction and shaft rotation of stepper motor can be seen on the LED display. Alternative to digital rotation encoder as a digital encoder input, this circuit uses a stepper motor. Here is the schematic diagram of the circuit: (Source: freecircuitdiagram)
