Digital Clock circuit with CMOS 4047

Published:2012/9/16 21:18:00 Author:Ecco | Keyword: Digital Clock, CMOS | From:SeekIC

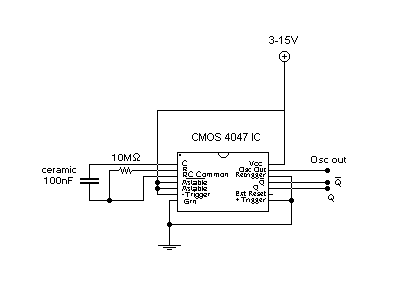

This circuit provides a digital square wave that can be viewed directly or used to drive other circuits. It used the CMOS 4047 Low-Power Monostable/Astable Multivibrator. As used in Tom Duncan's Adventures with Digital Electronic's Book, to drive CMOS Decade of 4-bit binary counters.
