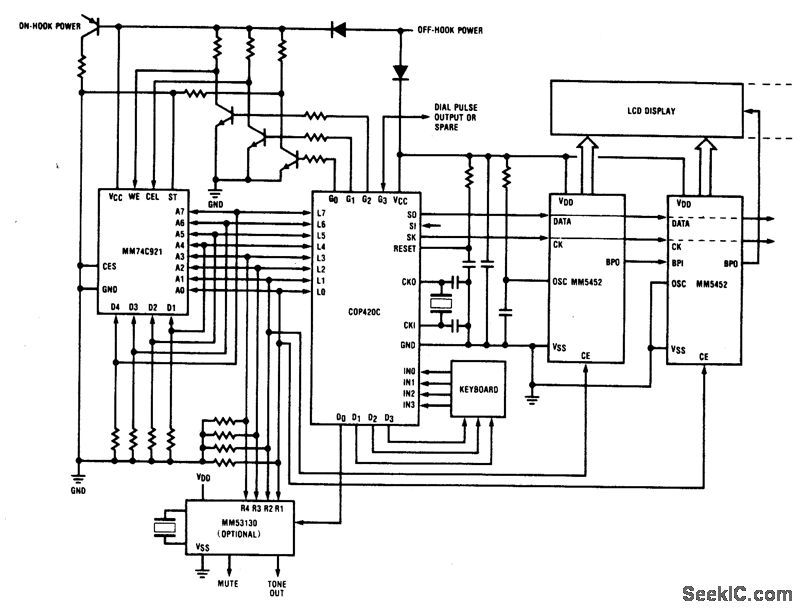

Repertory dialer phone has a library of fifteen frequently used numbers,(plus the last number dialed)stored In a standard CMOS RAM,A pushbutton keyboardenables telephone numbers to be keyed in and dialed out directly or a telephone number to be stored in the RAM and dialed automatically.
